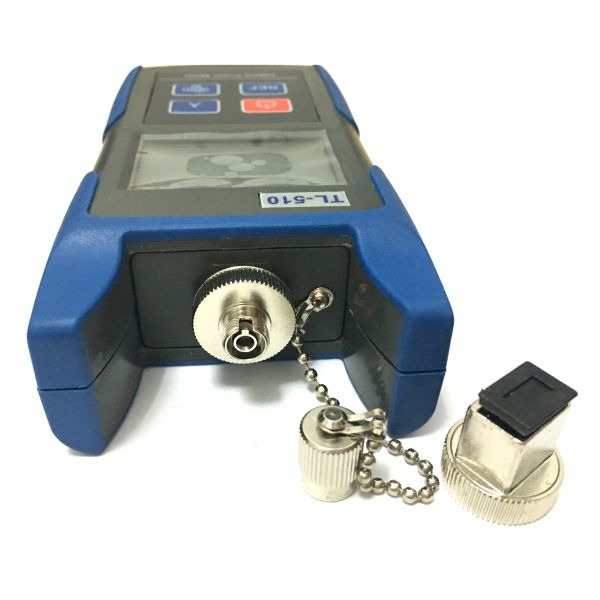

Mini TL-510 Optical Power Meter Handheld With FC SC Adapter Head

The TL-510 Mini Handheld Optical Power Meter is a precision, durable, and portable test instrument designed for the installation, operation, and maintenance of fiber optic networks. Available in two models with different power detection ranges to suit various applications.

• Fiber Optic CATV Engineering
• Optical Fiber Communication Engineering
• Research on Optical Fiber Sensing
• Production and Research of Optical Devices
• Other Fiber Engineering Applications

• High sensitivity with large dynamic range
• Universal interface design: FC/SC/ST interface, standard FC/SC adapter
• Compact protective housing design to prevent accidental drop damage
• Fast response without preheating required
• Low voltage function display
• Auto power off function
• Optional auto off backlight function
• User self-calibration capability
• Dual display: logarithmic power (dBm) and linear power (xW)
• Large screen with LED backlit display

• Power Measurement Range: A: -70 ~ +10 dBm, C: -50 ~ +26 dBm
• Wavelength Measurement Range: 800 ~ 1700 nm
• Calibration Wavelength: 850, 1300, 1310, 1490, 1550, 1625 nm
• Probe Type: InGaAs
• Measurement Accuracy: <± 3% (-10dBm, 22℃)
• Display Resolution: Linear: 0.1%, Logarithmic: 0.01 dBm
• Operating Temperature: -10 ~ +50 ℃
• Storage Temperature: -20 ~ +70 ℃
• Relative Humidity: 90% (+30 ℃), non-condensing
• Optical Interface: FC, SC (ST, LC optional)
• Power Supply: 3 AAA batteries
• Battery Life: 120 hours continuous operation
• Auto Shutdown: 10 minutes
• Net Weight: 160g
• Gross Weight: 300g
• Dimensions: 130 × 63 × 29 mm

We offer comprehensive OEM and ODM services. Custom branding options available for cables, packaging bags, labels, and other components according to your requirements.

• International Express: UPS, TNT, DHL, etc.
• International Air: CA, AA, EA, etc.
• Sea Freight
