Optical Fiber Mini VFL Visual Fault Locator Fiber Optic Cable Tester Red Laser Pen KCO-LP-05
The KCO-LP Series Mini Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator.
A Visual Laser Source is usually used to inspect the damaged or broken point of an optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point.
The KCO-LP Series Mini Visual Laser Source is suitable for both single mode and multimode fibers. The performance of the visual laser source will act a little different on different fiber coat and color.
KOCENT OPTEC LIMITED can supply the VFL with 5mW, 10mW, 20mW, 30mW and 50mW. It has 3 colors to choose: silve, black and golden. Use high quality Aluminum alloy. It is easy to use and small size.
Corresponding table:
| P/N |
Output Power |
Testing length |
| KCO-PL-01 |
1mW |
3km~5km |
| KCO-PL-10 |
10mW |
10~12km |
| KCO-PL-20 |
20mW |
14km |
| KCO-PL-30 |
30mW |
15km |
Specification:
| Model |
KCO-LP-01 |
KCO-LP-10 |
KCO-LP-20 |
KCO-LP-30 |
| Laser Launcher Level① |
CLASS IIIA |
CLASS IIIB |
CLASS IIIB |
CLASS IIIB |
| Output Power② |
≥1mW |
≥10mW |
≥15mW |
≥30mW |
| Detecting Range③ |
About 5km |
About 12Km |
About 14km |
About 15km |
| CW Mode Battery Life④ |
About 13 hours |
About 6 hours |
About 5 hours |
About 3 hours |
| 2Hz Mode Battery Life④ |
About 23 hours |
About 12 hours |
About 10 hours |
About 6 hours |
| Laser Launcher Type |
LD |
| Optical Connector |
universal 2.5mm adapter (FC/SC/ST) |
| Output Wavelength |
650nm±10nm |
| Modulation Frequency |
CW / 2Hz |
| Power |
2*AAA dry batteries |
| Working Temperature |
-10℃~+50℃; <90%RH |
| Storage Temperature |
-20℃~+70℃; <90%RH |
| Dimension & Weight |
L120mm*W33mm*H30mm / about 67.8g |
| Standard Accessories: |
| 2*AAA batteries, carrying bag, user manual |
| Optional Accessories: |
| Male FC to female LC adapter for LC connector |
Note:
- It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
- The output power is figured out by multi-mode optical fiber at 23℃±3℃.
- Detecting range will be different with different fibers.
- Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.
Size:
Application:
- Test Lab of optical fibers
- Maintenance in Telecom
- Maintenance CATV
- Other Fiber Optic Measurements
- Insert the fiber into VFL through Fiber Connector.
- It can be used as reference of the multi- core cable
- End to end fiber identification
- Identify the breaks and micro-bend of the pigtail/fiber
- Operation
Feature:
- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Portable and rugged, easy to use

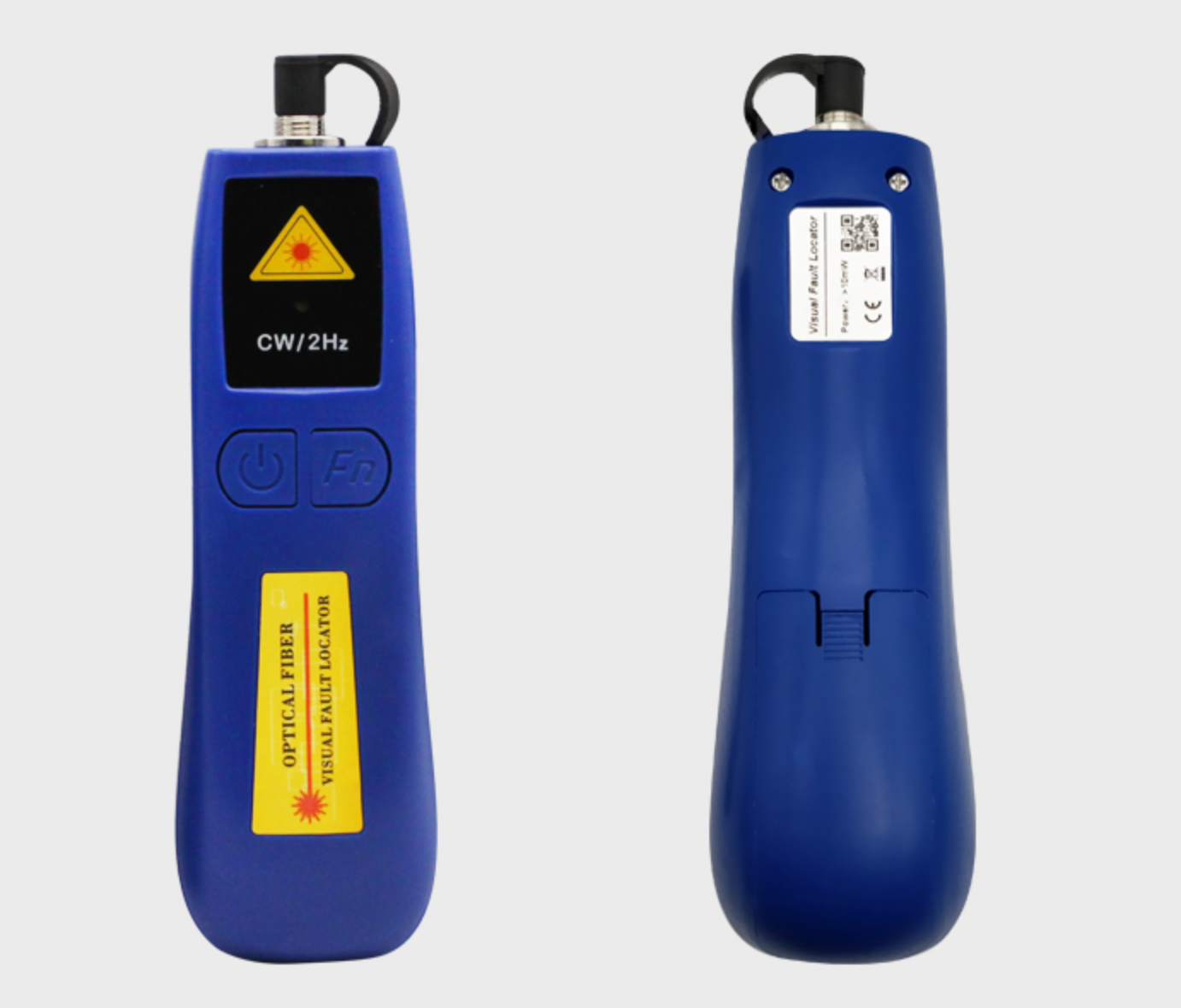

Product pictures:
Cost effective:
The Pen type VFL's extremely high efficiency guarantees prolonged operation with two standard AAA alkaline batteries, typically providing 50 hours of uninterrupted operation.
Priced to accommodate the tightest budgets, the KCO-VFL-x Pocket Pal is a truly affordable way to locate faults in OTDR dead zones. Its effectiveness justifies purchasing one for just about every fiber technician.
We adopt the new technology for AL composite material make the PEN more light. And use import Mitsubishi LD Laser, make the lights signal more gathered and less attenuation
Working picture:
OEM/ ODM service:
If you want to print your own brand LOGO on the pen lable or package, it is no any problem. Our OEM service is always ready for you. Please call us or send e-mail to us with your detail inquiry to get more informations.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
